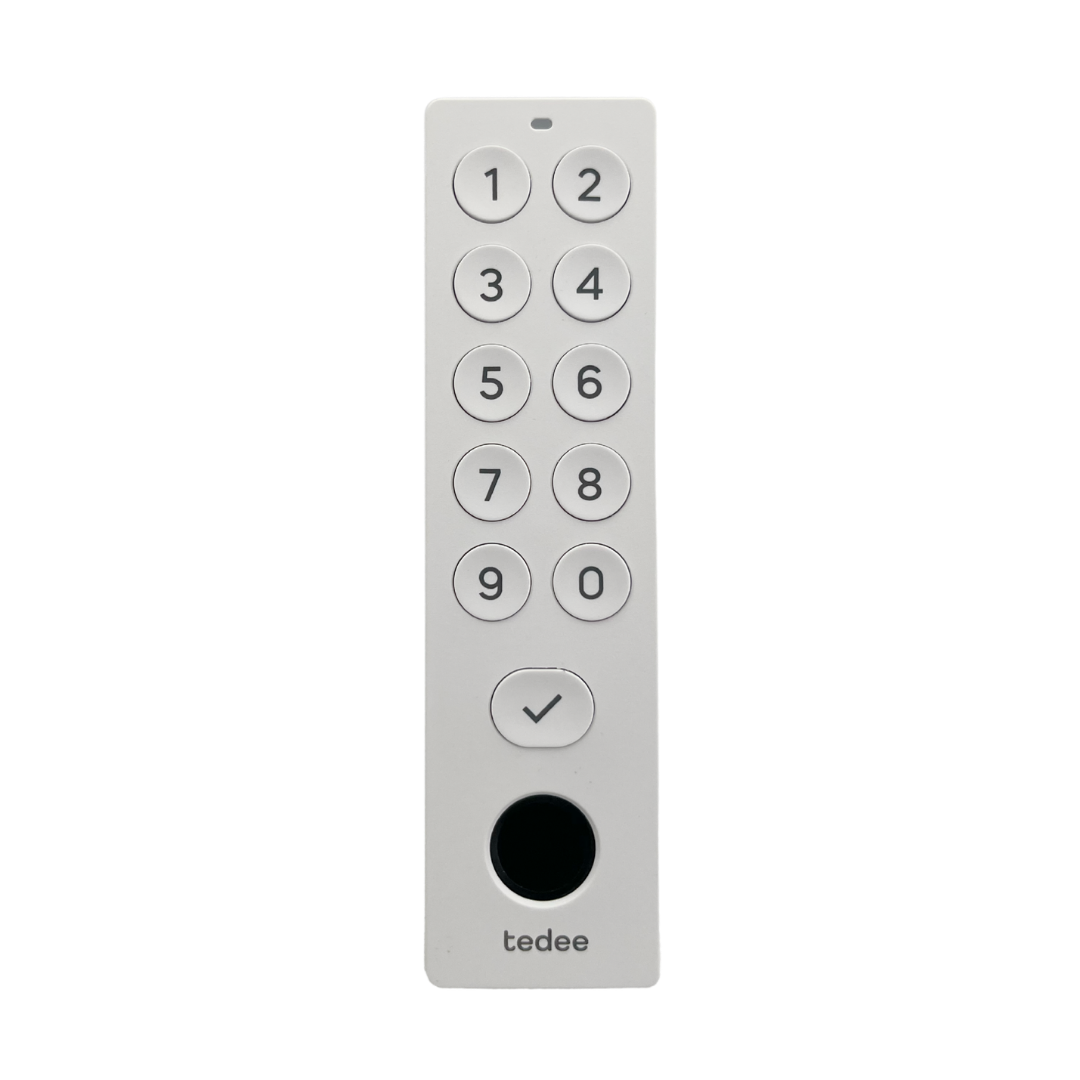

Tedee Keypad PRO
Add secure PIN and biometric access to your Tedee smart lock with the Tedee Keypad PRO, available in Black and White.
Unlock your door using an authorised fingerprint or a secure 5–8 digit PIN. Keypad PRO supports up to 100 individual PINs and 100 fingerprint scans, with custom access schedules and activity tracking managed through the Tedee app.
Designed for installation outside the door, its weather-resistant construction connects wirelessly to a paired Tedee PRO or Tedee GO/GO2 smart lock via Bluetooth. The Tedee Bridge is not required for normal keypad operation.
Install it wirelessly using four replaceable AAA batteries and the supplied adhesive pad or mounting hardware. For permanent power, Keypad PRO can also be connected to a suitable 5–24V DC power supply. Battery operation provides more than 12 months of typical use, depending on conditions.
Product Information
Installation
Specifications
| Model | TKV2.0 |
| Dimensions | 125 x 33 x 23,5 mm |
| Weight | 68g (without batteries), 115g (with batteries) |
| nstallation Options | Adhesive pad (pre-applied) or wall plugs and screws (included). Suitable for outdoor installation. |
| Power Supply | 4x LR03 AAA 1.5V batteries or 5-24V DC, 0.5A wired input |
| Battery Life | 12+ months |
| Bluetooth® | BLE 5.2 2.4GHz |
| Frequency Range | from 2.4GHz to 2.483GHz (Max output power: 8dBm) |
| Operating temperature (batteries) | -18°C to +54°C |
| Operating temperature (wired power) | -30°C to +54°C |
| Operating Humidity | Up to 95% |
| Compatible with | Tedee PRO, Tedee GO, Tedee Bridge |
